Introduction

Addressing the inefficiencies of manual attendance systems in educational institutions, this project delivers an IoT-based fingerprint attendance system using the ESP32 microcontroller and AS608 fingerprint sensor. Integrated with Firebase Realtime Database, it ensures secure, real-time attendance tracking with AES-encrypted data uploads. A 16x2 LCD, push buttons, LEDs, and a buzzer provide an intuitive user interface, while WiFi connectivity enables cloud synchronization. The system supports fingerprint enrollment, deletion, and attendance marking (sign-in/sign-out) for up to 127 users, with data persisted in EEPROM. A Python script processes encrypted attendance records, generating CSV, HTML, and Excel reports. This solution enhances accuracy, security, and efficiency in attendance management, transitioning from paper-based methods to a robust biometric system. The project also aligns with secure real-time biometric data upload principles, emphasizing data integrity and privacy.

System Overview
Detailed Overview

Aim and Objectives

Aim:
To design and implement an IoT-based fingerprint attendance system for educational institutions, enabling secure, real-time biometric data collection and management.

Objectives:
The objectives of the project are outlined below:

1. Develop a fingerprint-based authentication system for accurate attendance tracking.
2. Implement AES encryption for secure data transmission to Firebase Realtime Database.
3. Provide a user-friendly interface using LCD and push buttons for enrollment and attendance operations.
4. Enable real-time synchronization with Firebase for attendance data storage and retrieval.
5. Persist user states (sign-in status, class, present time) in EEPROM for reliability.
6. Process encrypted attendance data using Python to generate comprehensive reports (CSV, HTML, and Excel).
7. Validate system performance in educational settings with multiple users.

Features & Deliverables

• Fingerprint Authentication: Uses AS608 sensor for secure, contactless attendance marking (sign-in/sign-out).
• Secure Data Handling: Implements AES-128 encryption with PKCS#7 padding for attendance data before Firebase upload.
• Real-Time Cloud Integration: Stores attendance records in Firebase Realtime Database, synchronized via ESP32’s WiFi.
• User Interface: Features a 16x2 LCD for status display, push buttons for navigation, LEDs for visual feedback, and a buzzer for audible alerts.
• Data Persistence: Saves user states (sign-in status, class name, present time) in EEPROM for power-loss recovery.
• Offline Support: Handles attendance operations locally when WiFi is unavailable, with EEPROM storage.
• Backend Processing: Python script decrypts Firebase data, generating CSV files per class/date, plus HTML and Excel reports.
• Time Synchronization: Uses NTP server for accurate timestamps in attendance records.

List of Libraries Used and Custom Code Implementations

• ESP32 Libraries (C++):
  • Adafruit_Fingerprint: (#include <Adafruit_Fingerprint.h>) For interfacing with the AS608 fingerprint sensor.
  • FirebaseESP32: (#include <FirebaseESP32.h>) For Firebase Realtime Database connectivity.
  • LiquidCrystal_I2C: (#include <LiquidCrystal_I2C.h>) For controlling the 16x2 LCD display.
  • AESLib: (#include <AESLib.h>) For AES-128 encryption of attendance data.
  • base64: (#include <base64.h>) For encoding encrypted data to Base64.
  • EEPROM: (#include <EEPROM.h>) For storing user states persistently.
  • ArduinoJson: (#include <ArduinoJson.h>) For JSON serialization of attendance data.
  • WiFi: (#include <WiFi.h>) For ESP32 WiFi connectivity.
  • Custom Code: Manages fingerprint enrollment/deletion, attendance marking, AES encryption, and Firebase data structuring.
• Python Libraries:
  • Pyrebase4: For accessing Firebase Realtime Database.
  • Pycryptodome: For AES decryption of attendance data.
  • Pandas: For data manipulation and CSV generation.
  • Tabulate: For console-based table display.
  • Openpyxl: For formatted Excel report generation.
  • Custom Script: Decrypts Firebase data, processes attendance records, and generates CSV, HTML, and Excel reports.


// Excerpt from main.ino
void markAttendance(int fingerprintID) {
    id = fingerprintID;
    classNum = 0;
    lcd.clear();
    lcd.print("Enter Class 0-9:");
    lcd.setCursor(0, 1);
    lcd.print(classNum);
    bool classSelected = false;

    while (!classSelected) {
        if (digitalRead(forward) == 0) {
            digitalWrite(buzzer, HIGH);
            delay(100);
            digitalWrite(buzzer, LOW);
            classNum++;
            if (classNum > 9) classNum = 0;
            lcd.setCursor(0, 1);
            lcd.print("   ");
            lcd.setCursor(0, 1);
            lcd.print(classNum);
            delay(150);
        } else if (digitalRead(ok) == 0) {
            digitalWrite(buzzer, HIGH);
            delay(100);
            digitalWrite(buzzer, LOW);
            classSelected = true;
            delay(150);
        }
    }

    if (WiFi.status() == WL_CONNECTED && !fullDateTime.startsWith("0000")) {
        reconnectWiFi();
        String className = "EIE52" + String(classNum);
        userState[id] = std::make_tuple(true, className, currentTime);
        String matricNo = getMatricNo(id);
        String encrypted = encryptData(id, matricNo, className, currentDate, 1, currentTime, "");
        String path = "/attendance_records/" + className + "/" + currentDate + "/id_" + String(id);
        if (Firebase.ready()) {
            bool success = Firebase.setString(fbdo, path, encrypted);
            Serial.printf("Sending Attendance Data... %s\n", success ? "Success" : fbdo.errorReason().c_str());
        }
    }
}




# Excerpt from process_attendance_decryption.py
def decrypt_data(encrypted_b64, class_name, date, identifier):
    try:
        encrypted_data = base64.b64decode(encrypted_b64)
        cipher = AES.new(AES_KEY, AES.MODE_CBC, AES_IV)
        padded_data = cipher.decrypt(encrypted_data)
        plaintext = unpad(padded_data, AES.block_size)
        json_data = json.loads(plaintext.decode('utf-8'))
        print(f"Decrypted data for {class_name}/{date}/{identifier}: {json_data}")
        return json_data
    except Exception as e:
        print(f"Decryption error for {class_name}/{date}/{identifier}: {e}")
        return None

def fetch_and_process_attendance():
    attendance_records = db.child("attendance_records").get().val()
    for class_name in attendance_records:
        class_data = attendance_records[class_name]
        for date in class_data:
            date_data = class_data[date]
            csv_data = []
            if isinstance(date_data, dict):
                for id_key, record in date_data.items():
                    if id_key.startswith("id_"):
                        id_num = id_key.replace("id_", "")
                    else:
                        id_num = id_key
                    if isinstance(record, str):
                        encrypted_b64 = record
                        decrypted = decrypt_data(encrypted_b64, class_name, date, id_key)
                        if decrypted:
                            csv_data.append({
                                "id": decrypted["id"],
                                "matric_number": decrypted["matric_number"],
                                "course": decrypted["course"],
                                "date": decrypted["date"],
                                "present": decrypted["present"],
                                "present_time": decrypted["present_time"],
                                "absent_time": decrypted["absent_time"] if decrypted["absent_time"] else ""
                            })
            if csv_data:
                df = pd.DataFrame(csv_data)
                output_dir = f"attendance/{class_name}"
                os.makedirs(output_dir, exist_ok=True);
                csv_path = f"{output_dir}/{date}.csv"
                df.to_csv(csv_path, index=False)
                print(f"Generated CSV: {csv_path}")



Pinout Diagram & GPIO Pin Usage

The following is the pinout diagram for the ESP32 Development Board used in this project, along with the GPIO pins utilized.

GPIO Pins Used:

This pin configuration optimizes ESP32’s capabilities for real-time biometric operations.

Process / Methodology

Hardware Implementation

Components Used: ESP32 Development Board, AS608 Fingerprint Sensor, LiquidCrystal_I2C, Push Buttons, LEDs, Buzzer, Veroboard, Jumper Wires, Resistors.

• ESP32 Development Board: Central microcontroller for fingerprint processing, WiFi connectivity, and Firebase communication.
• AS608 Fingerprint Sensor: Captures and authenticates fingerprint data for up to 127 users.
• LiquidCrystal_I2C: Displays system status, user IDs, and operation prompts.
• Push Buttons: Facilitate user inputs for enrollment, deletion, and navigation (Register, Back, Delete, OK, Forward, Reverse).
• LEDs: Provide visual feedback for WiFi status, validation, and enrollment modes.
• Buzzer: Emits audible alerts for user actions and system events.
• Veroboard and Jumper Wires: Ensure secure and organized circuit connections.
• Resistors: Regulate current for LEDs and button inputs.

• The AS608 Fingerprint Sensor was interfaced with the ESP32’s UART (Serial2) for reliable biometric data transfer.
• The LCD was connected via I2C to minimize pin usage while displaying real-time information.
• Push buttons were wired with pull-up resistors to ensure stable input signals for navigation and operation selection.
• LEDs and the buzzer were connected to GPIO pins to provide immediate visual feedback and auditory feedback for the user actions.
• The system was assembled on a veroboard with jumper wires for durability and secure connections.

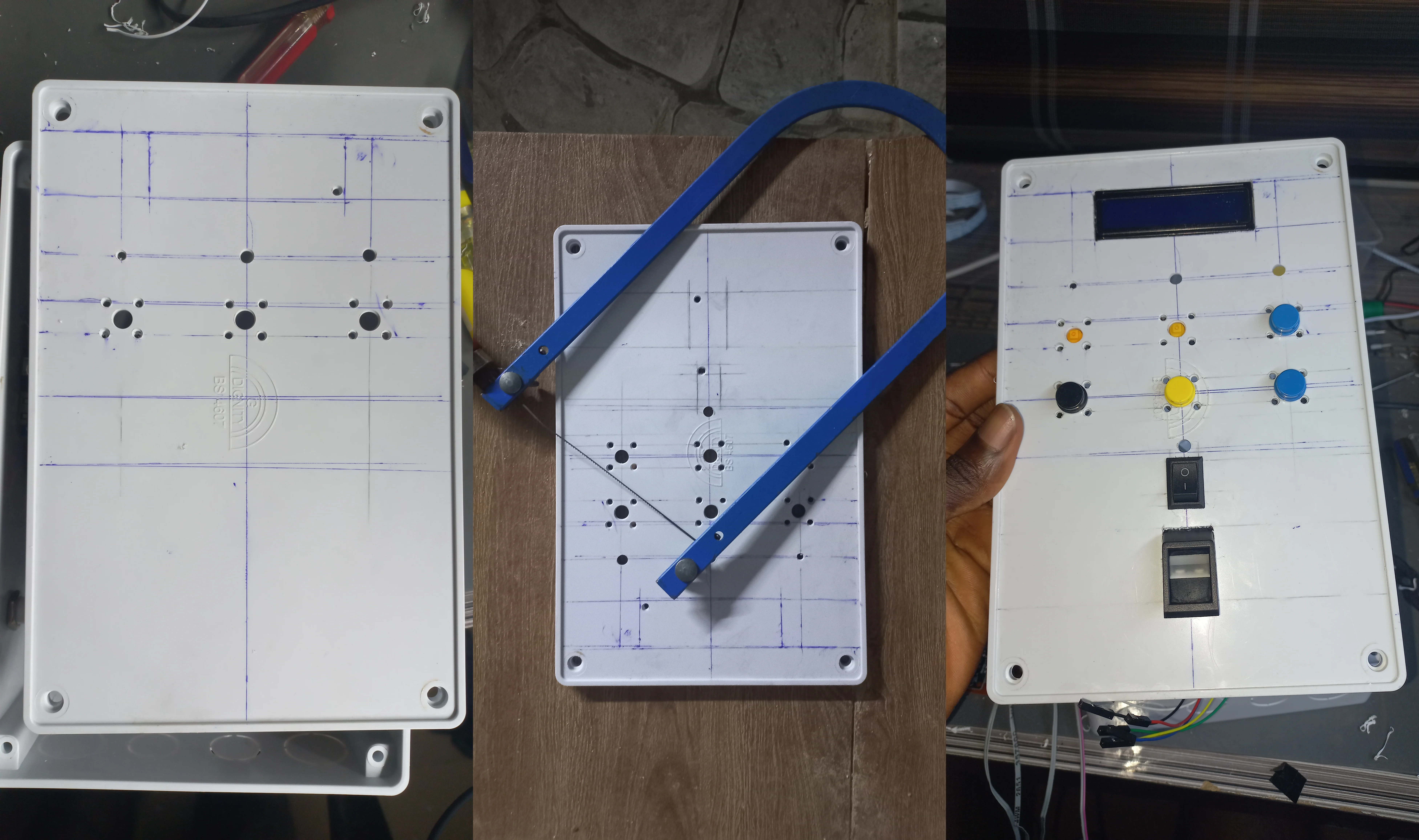

Hardware Assembly Casing Fabrication
Batteries, Veroboard, Charging Module, and ESP32 Development Board
Veroboard Soldered, Buzzer, DIL Connector, LEDs, LCD1602, Push Buttons, and Internal Circuitry containing AS608 Fingerprint Sensor, and Switch

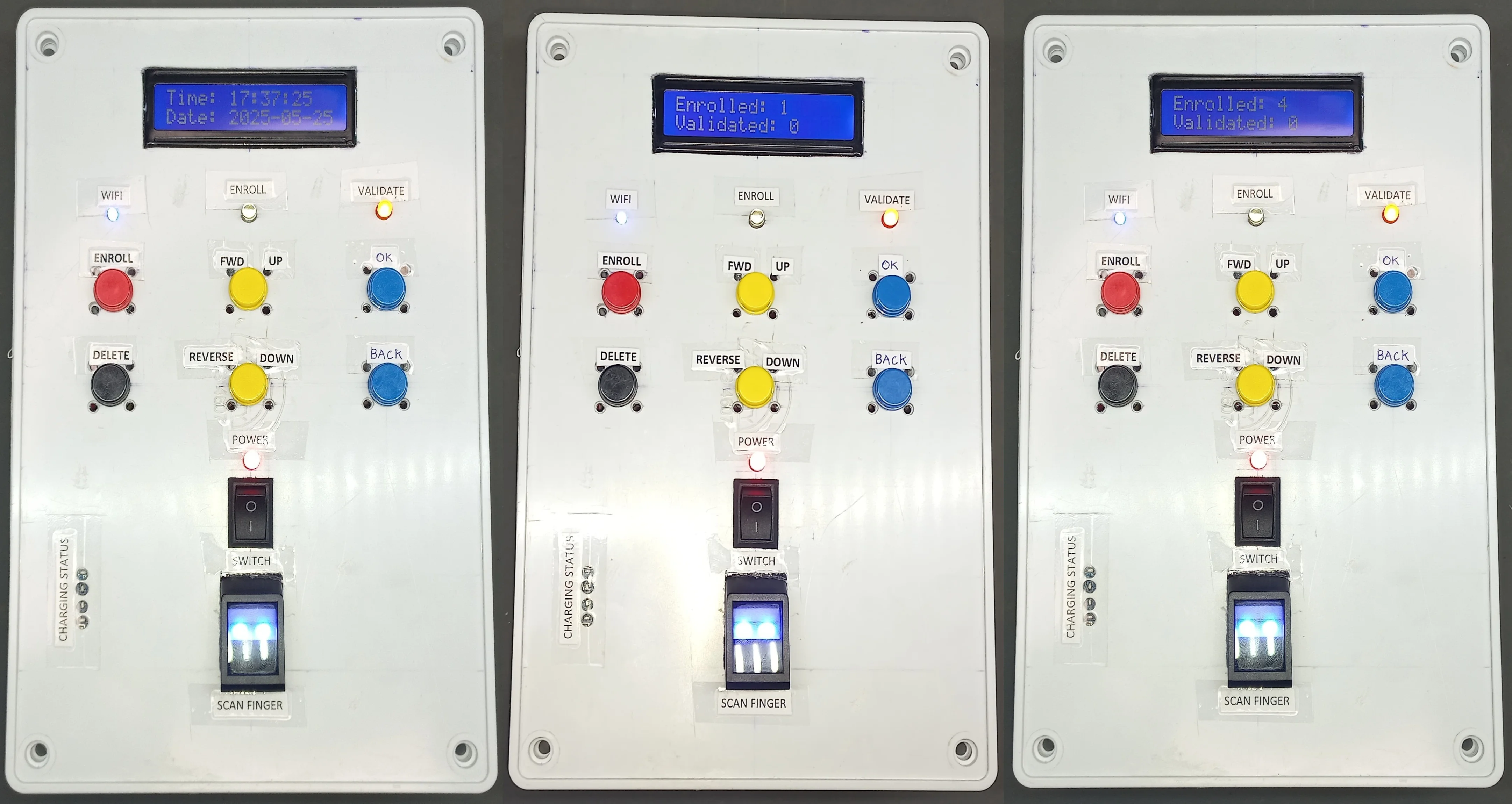

Front View of the Hardware Development (Complete Assembly)

Software Implementation

• Programmed the ESP32 in C++ using Arduino IDE, integrating libraries for fingerprint scanning, LCD display, and Firebase connectivity.
• Developed algorithms for fingerprint enrollment, deletion, and attendance marking, with AES encryption for data security.
• Implemented WiFi reconnection logic and NTP time synchronization for accurate timestamps.
• Used EEPROM to store user states (sign-in status, class name, present time) for offline operation.
• Developed a Python script to decrypt attendance data from Firebase and generate CSV, HTML, and Excel reports.

Software Workflow

• Initialize system → connect to WiFi → sync time with NTP server.
• Scan fingerprint → authenticate against stored templates → select class (EIE520–EIE529).
• Mark attendance (sign-in or sign-out) → encrypt data → upload to Firebase under /attendance_records/<class_name>/<date>/<id>.
• Persist state in EEPROM for reliability.
• Python script retrieves encrypted data, decrypts it, and generates reports (CSV, HTML, Excel).

Software Workflow Diagram

Challenges & Solutions

• Challenge: Fingerprint sensor misreads due to poor finger placement.
  Solution: Implemented LCD prompts for proper finger positioning and multiple scan attempts.
• Challenge: WiFi disconnections disrupting Firebase uploads.
  Solution: Added a WiFi reconnection mechanism with timeout and LED indicator for network status.
• Challenge: Ensuring data integrity during power loss.
  Solution: Used EEPROM to store user states, enabling system recovery.
• Challenge: Handling variable-length data in AES encryption.
  Solution: Applied PKCS# padding to standardize data length for encryption.
• Challenge: Processing mixed data structures in Firebase (list vs. dict).
  Solution: Python script handles both formats, ensuring compatibility with old and new data.

Results & Security

• Accurate Authentication: Successfully authenticated up to 127 fingerprints for attendance marking.
• Secure Data: AES-encrypted data ensured privacy during Firebase uploads.
• Real-Time Tracking: Attendance records synced to Firebase in real-time, accessible via Python-generated reports.
• User-Friendly: LCD, buttons, LEDs, and buzzer provided clear feedback for students and operators.
• Offline Support: EEPROM storage enabled reliable operation during network outages.
• Comprehensive Reporting: Generated CSV files per class/date, with styled HTML and Excel summaries.

Firebase Database Structure

/attendance_records/
  /EIE520/
    /2025-05-01/
      id_001: "base64_encrypted_data"
      id_002: "base64_encrypted_data"
    /2025-05-02/
      id_001: "base64_encrypted_data"
  /EIE521/
    /2025-05-01/
      id_003: "base64_encrypted_data"
/registered_student_records/
  /1/
    fingerprint_id: 1
    matric_number: "17CK022738"
    timestamp: "2025-05-25 10:00:00"
  /2/
    fingerprint_id: 2
    matric_number: "17CK022739"
    timestamp: "2025-05-25 10:07:43"

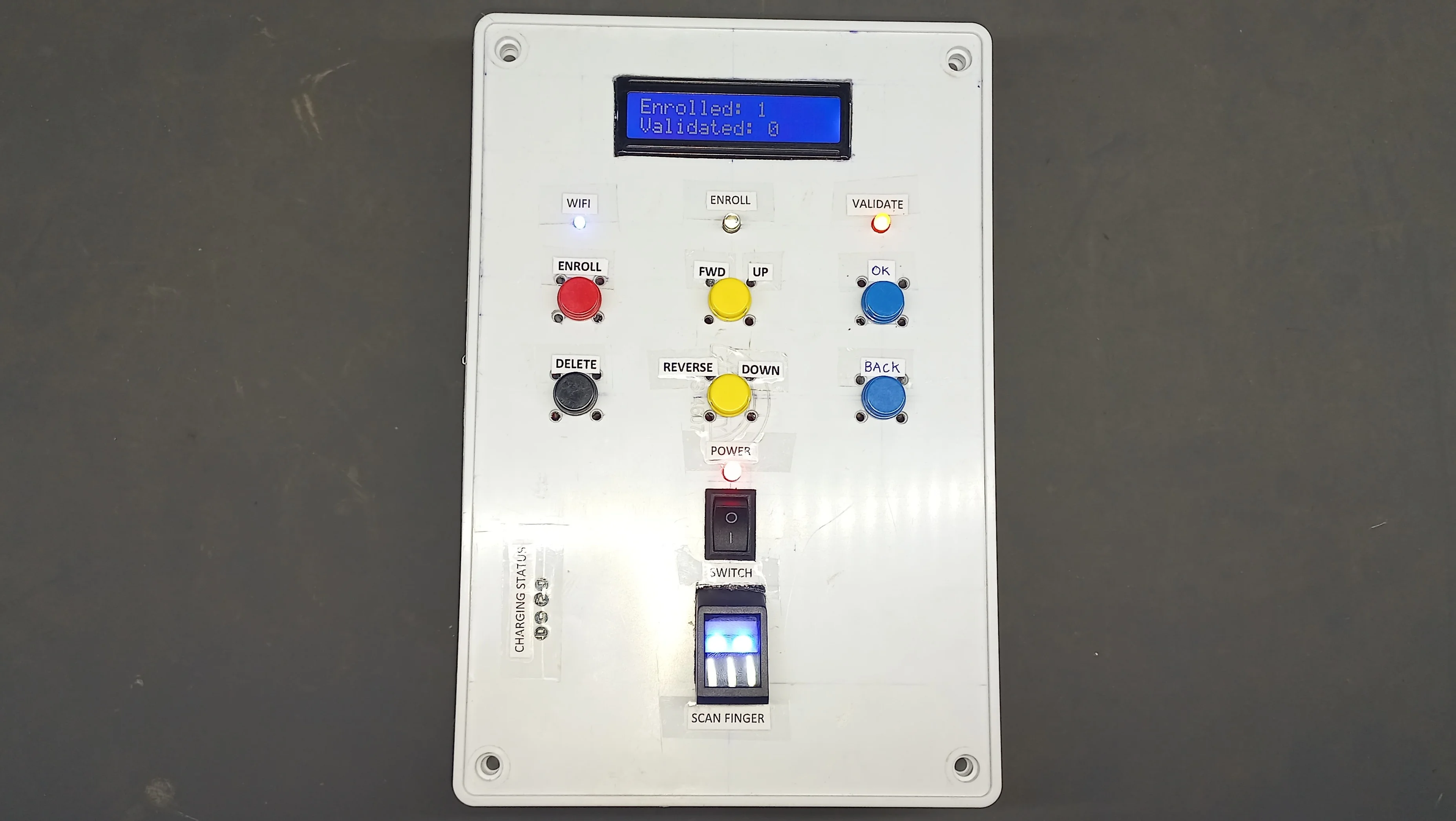

Pictorial Results Startup Display

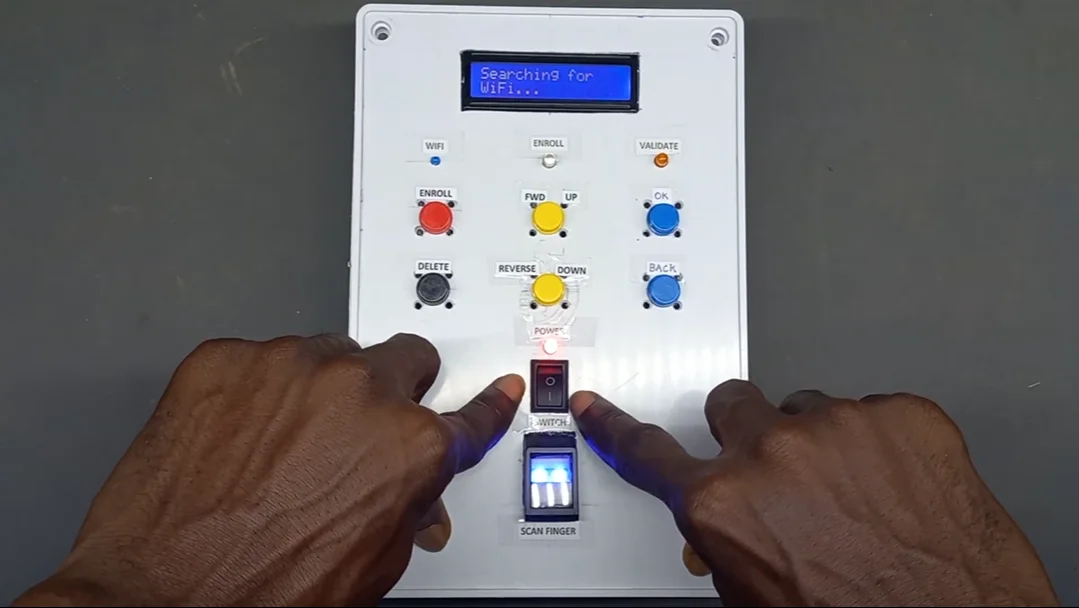

WiFi Connecting
Fingerprint Scan Prompt to Mark Attendance
Attendance Marked

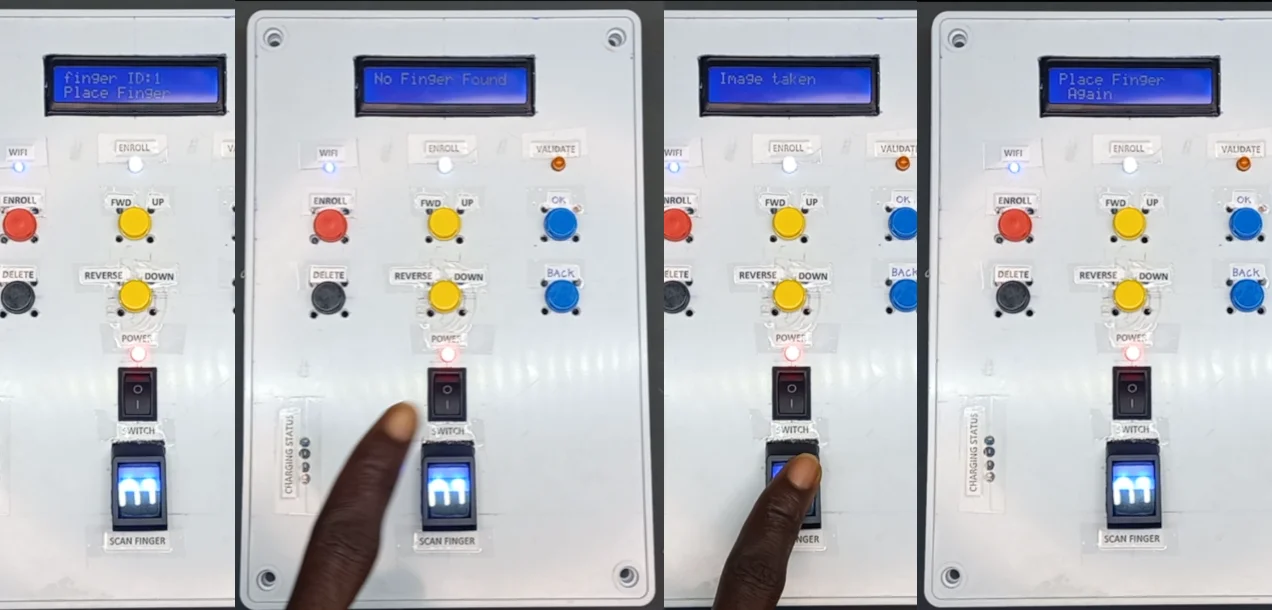

Enrollment Interface

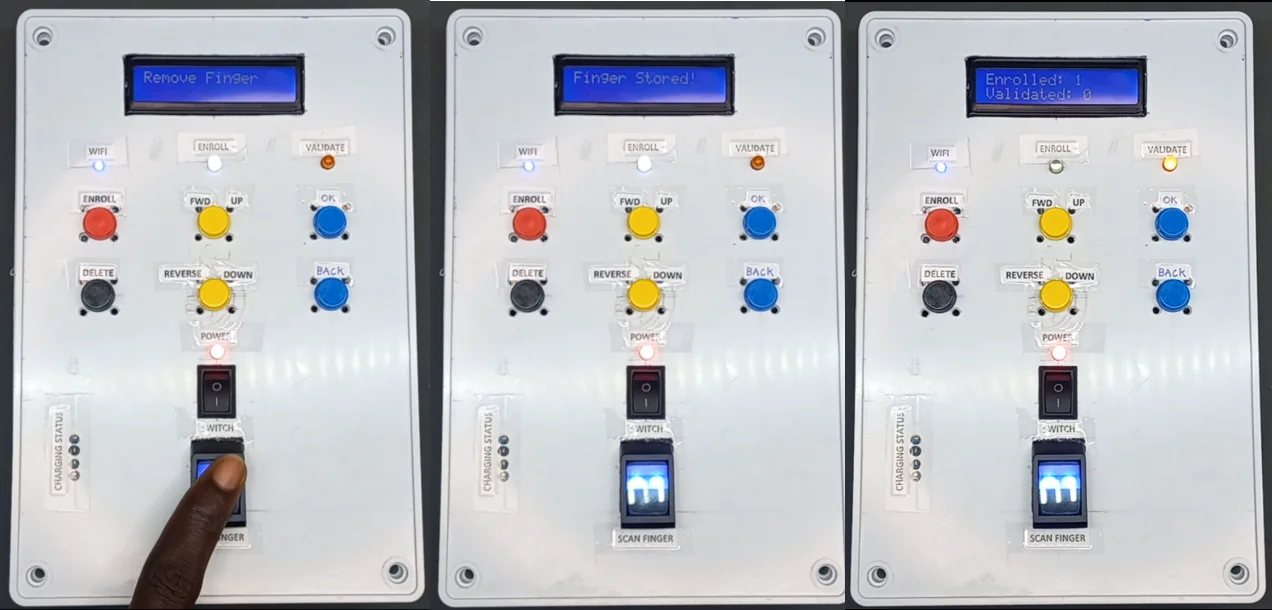

Enrollment Interface
Enrollment Interface
Excel Report Sample

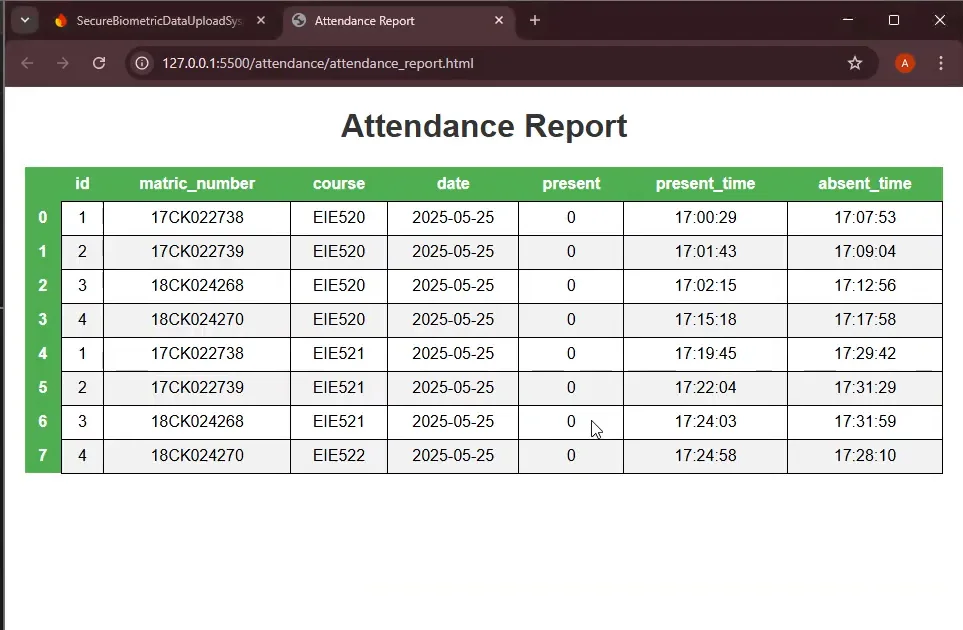

HTML Report Sample

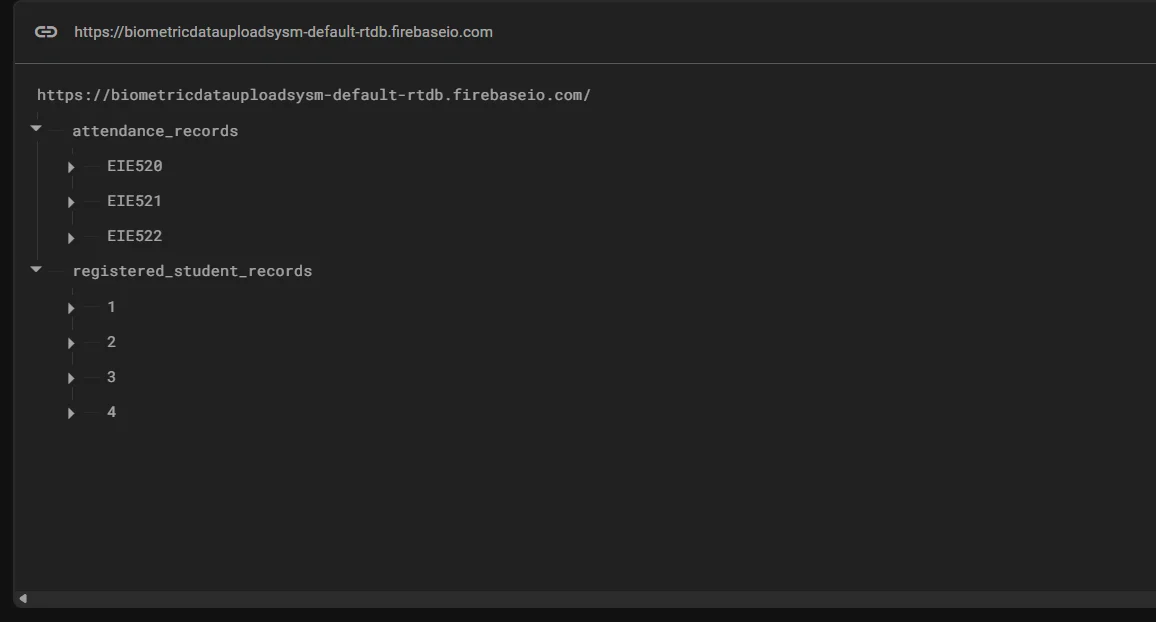

Firebase Data View
Firebase Data View (registered students)
Firebase Data View (registered students)

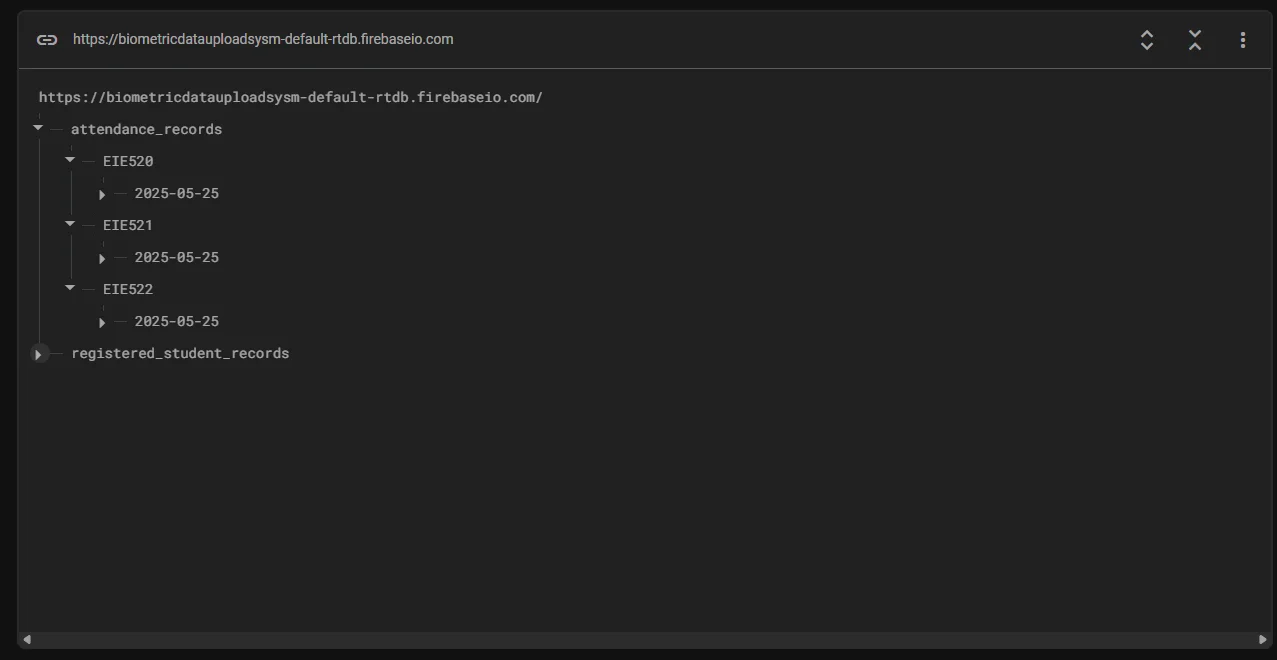

Firebase Data View (attendance records)
Firebase Data View (attendance records)

What I Learned

• Biometric System Integration: Gained expertise in interfacing fingerprint sensors with microcontrollers for authentication.
• Secure Data Handling: Mastered AES encryption and Base64 encoding for secure data transmission.
• IoT and Cloud: Learned real-time data management with Firebase and WiFi-enabled devices.
• Embedded Systems: Enhanced skills in hardware-software integration, including GPIO and I2C.
• Data Processing: Developed Python scripts for data analysis and reporting, handling encrypted data.

Demonstration & Access

• GitHub Repository: View code & documentation
• Demo Video: Watch demonstration

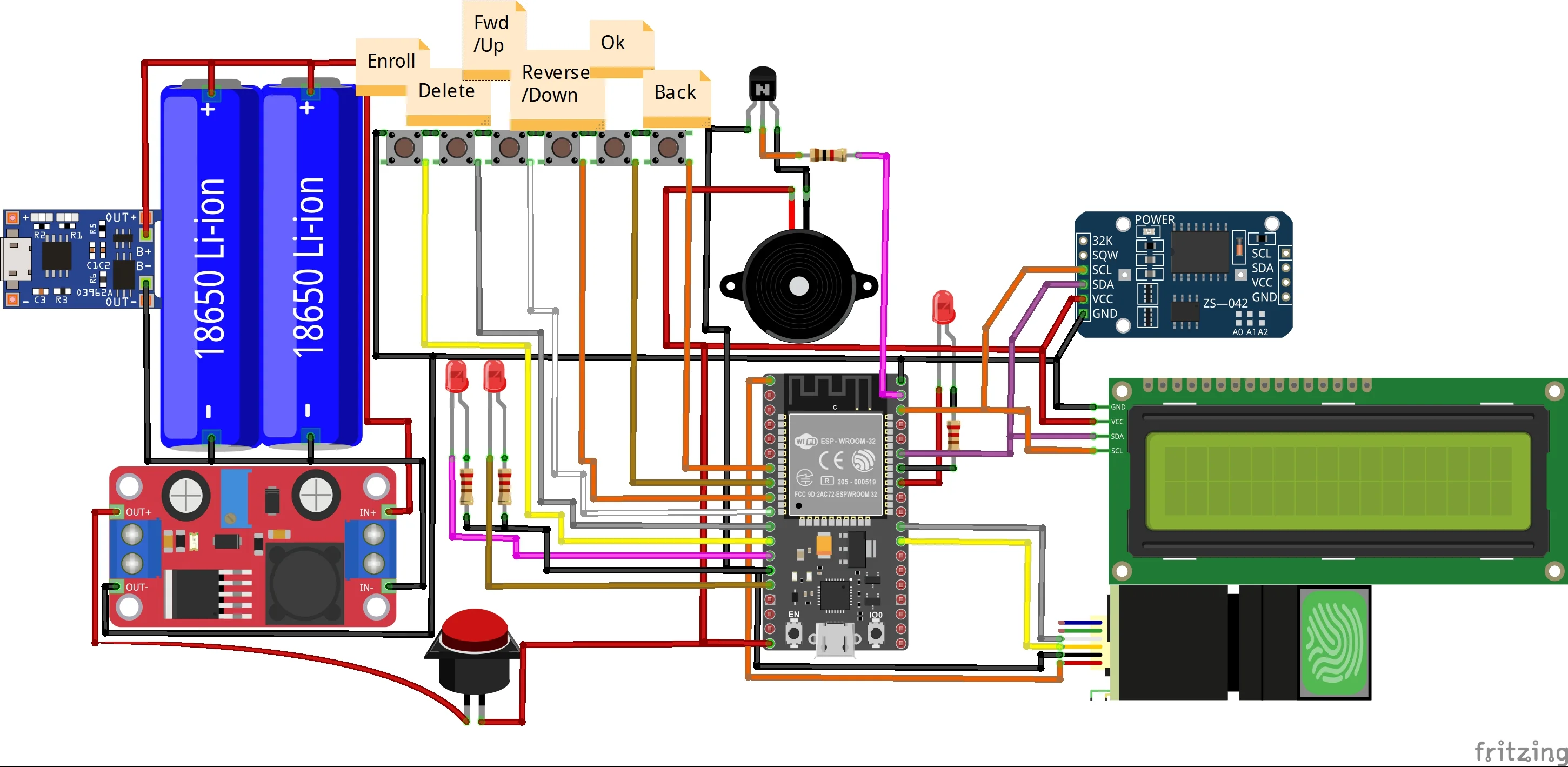

Circuit Diagram

Code Snippet

Future Enhancements

1. Add mobile app support for remote attendance monitoring and student management.
2. Implement facial recognition for multi-modal biometric verification.
3. Enhance encryption with AES-256 for increased security.
4. Integrate battery backup with power management for portability.

My Design and Myself Happy Me, and the Device I Built 🥳
